Leclerc  |  SKU: LEC-1016-2700

Typically Ships in 6 - 8 Months

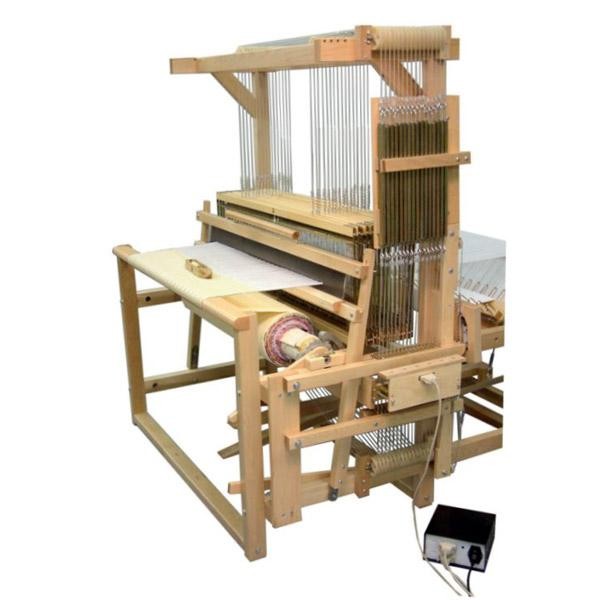

Leclerc Weavebird V2 Loom

$9,05600
Taxes, discounts and shipping calculated at checkout.
Add To Wishlist
Weaving Width
Harness
The Weavebird is a centre closed dobby shedding mechanism. There are no jacks, no lams, no tie ups, no limitations on shaft combinations and no limitations of pattern repeats.Two treadles, hinged from the back of the loom, operate the shedding mechanism. Weavebird controls both the rising and sinking shed so the tension on the warp threads is always uniformly even. Because part of the warp threads rise while the balance sink, the yarn stretch is minimized. The loom has 2 treadles. The right treadle opens the shed and the left treadle closes it. Due to Leclerc's unique Shaft counter-weight design, physical stress to operate it is minimized. The treadling effort to operate those Loom is similar to operating a 4 shaft counterbalance loom.

Dobby Loom Information

Weavebird Floor Looms are excluded from our Free Shipping promotion.

Loom Standard Equipment:

  • Interface Box
  • "Weavelec" software to drive the loom from any .WIF pattern
  • 1 Stainless Steel Reed  6, 8, 10 or 12 dent
  • Inserted Eye Heddles 12½" or Texsolv
  • 1 End Feed Shuttle 6122-8000
  • 12 Pirns 6¼" 6133-6000
  • 1 Reed & Heddles Hooks 10 5/8" long
  • 2 Wood lease sticks
  • 4 Warp rods
  • Book: "Warp & Weave"
  • Assembly Instruction and Video
  • Aprons
  • 2 Years Warranty on all parts including the Interface box and Solenoids

Options:

Optional Accessories:

Additional Items:

Dimensions:

Configuration

Height

Depth x Width

Weight

Weavebird V2 27” 16 Harness

68”

Breastbeam 34.5"

49” x 44”

200 lbs.

Weavebird V2 27” 24 Harness

68”

Breastbeam 34.5"

54” x 44”

240 lbs.

Weavebird V2 36” 16 Harness

68”

Breastbeam 34.5"

61” x 50.5”

240 lbs.

Weavebird V2 36” 24 Harness

68”

Breastbeam 34.5"

66” x 50.5”

280 lbs.

Weavebird V2 36” 32 Harness

68”

Breastbeam 34.5"

71” x 50.5”

310 lbs.

Weavebird V2 45” 16 Harness

68”

Breastbeam 34.5"

61” x 59.5”

280 lbs.

Weavebird V2 45” 24 Harness

68”

Breastbeam 34.5"

66” x 59.5”

330 lbs.

Weavebird V2 45” 32 Harness

68”

Breastbeam 34.5"

71” x 59.5”

360 lbs.

Weavebird V2 60” 16 Harness

68”

Breastbeam 34.5"

61” x 74.5”

320 lbs.

Weavebird V2 60” 24 Harness

68”

Breastbeam 34.5"

66” x 74.5”

385 lbs.

Weavebird V2 60” 32 Harness

68”

Breastbeam 34.5"

71” x 74.5”

410 lbs.
