Leclerc Sectional Warp Beam

xxx11654

Typically Ships In:
2 - 4 Weeks (Special Order Item)

Leclerc Sectional Warp Beams - Can be used on other looms - Please see this document on how to apply sectional techniques using a Leclerc sectional warp beam and equipment.

For direct warping from spools or small bobbins.

Available in 1 and 2 inch section (The Dorothy is available in 1 inch sections for the 24 inch only).

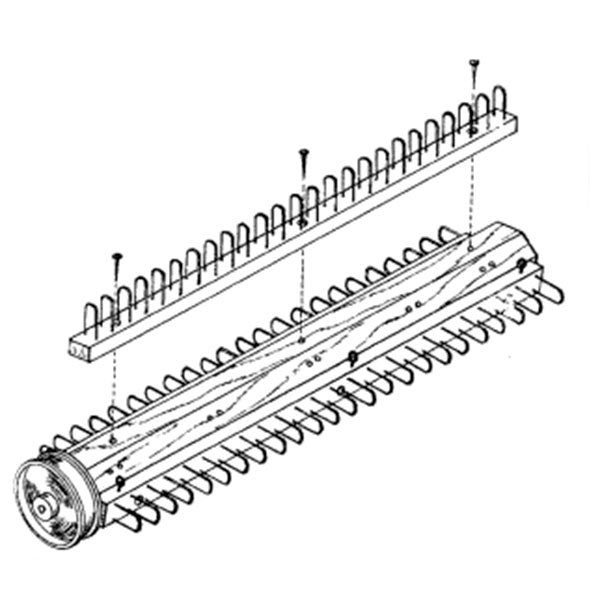

This system consists of 4 rake-like pieces that are attached to the plain beam on the loom or onto the Double Warp Beam. It allows warp beaming 1 inch or 2 inch wide at a time and requires a number of spools according to the sett of warp ends.

  • Dorothy and the Voyageur: the clamps are fixed directly onto the beam and hold 5" per turn (Dorothy looms made prior to 1985 will need the lower bar removed in order to install the warp beams)
  • Compact: Holds 15" per turn
  • Artisat and Inca: Holds 16" per turn
  • Fanny, Mira, Nilus, Nilus II, Colonial I, Kebec and Nilart: Holds 19" per turn

Many weavers use the Leclerc 1" section beam on non-Leclerc looms (because very few manufacturers offer SWB in 1"). This will require drilling new holes on your warp beam. The results are excellent and the 1" sections seem to be more reliable (than 2").

A sectional warp beam is especially appreciated by the weaver without a helper since the warp can be beamed easily by one person.


The overall length of the rakes are:

  • 36" weaving width is 37" long
  • 45" weaving width is 47" long
  • 60" weaving width is 61" long

Please note, the sectional rakes do not come with the 5/16" steel rod that goes through the screw eyes to provide a starting point for tying on the warp.  These rods can be ordered here.

Optional Accessories

Note: Items with a shipping length of 48” and longer are subject to a surcharge, regardless of the shipping method selected. (Fee is imposed by the shipping carriers.)

View More
$244.00 - $880.00
Adding to cart… The item has been added
Description

Leclerc Sectional Warp Beams - Can be used on other looms - Please see this document on how to apply sectional techniques using a Leclerc sectional warp beam and equipment.

For direct warping from spools or small bobbins.

Available in 1 and 2 inch section (The Dorothy is available in 1 inch sections for the 24 inch only).

This system consists of 4 rake-like pieces that are attached to the plain beam on the loom or onto the Double Warp Beam. It allows warp beaming 1 inch or 2 inch wide at a time and requires a number of spools according to the sett of warp ends.

  • Dorothy and the Voyageur: the clamps are fixed directly onto the beam and hold 5" per turn (Dorothy looms made prior to 1985 will need the lower bar removed in order to install the warp beams)
  • Compact: Holds 15" per turn
  • Artisat and Inca: Holds 16" per turn
  • Fanny, Mira, Nilus, Nilus II, Colonial I, Kebec and Nilart: Holds 19" per turn

Many weavers use the Leclerc 1" section beam on non-Leclerc looms (because very few manufacturers offer SWB in 1"). This will require drilling new holes on your warp beam. The results are excellent and the 1" sections seem to be more reliable (than 2").

A sectional warp beam is especially appreciated by the weaver without a helper since the warp can be beamed easily by one person.


The overall length of the rakes are:

  • 36" weaving width is 37" long
  • 45" weaving width is 47" long
  • 60" weaving width is 61" long

Please note, the sectional rakes do not come with the 5/16" steel rod that goes through the screw eyes to provide a starting point for tying on the warp.  These rods can be ordered here.

Optional Accessories

Note: Items with a shipping length of 48” and longer are subject to a surcharge, regardless of the shipping method selected. (Fee is imposed by the shipping carriers.)
