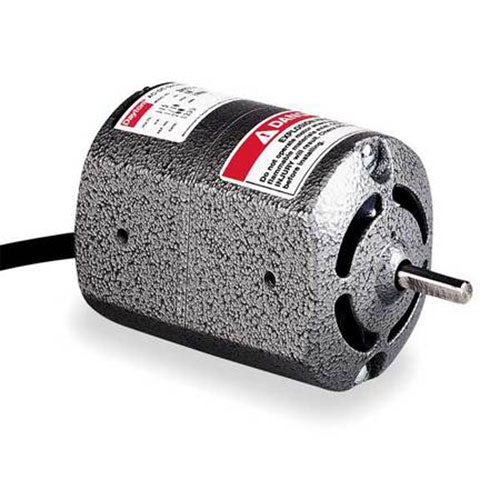

Schacht Double-End Electric Winder Motor

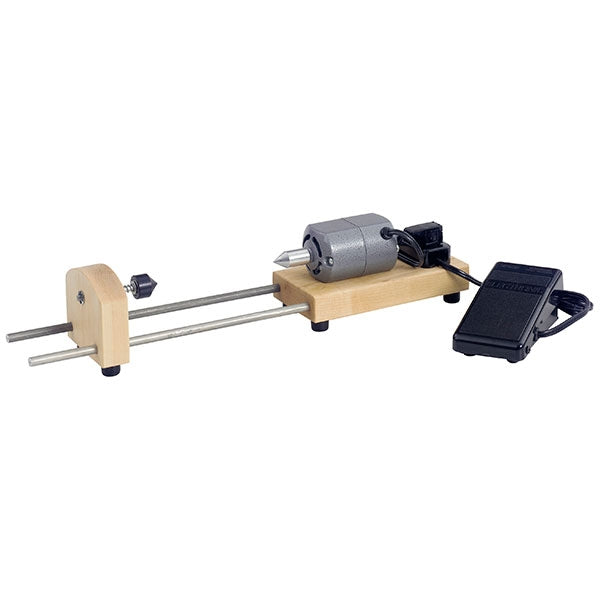

Replacement motor for the Schacht Double-End Electric Winder.

Replacement Instructions:

1. Remove two screws from bottom of winder base.  (This separates the motor from the base.)
2. Remove aluminum chuck from the shaft of the old motor using hex key. (Hex key is included with the purchase of a winder.)
3. Remove electrical plug from old motor. (Plastic cast "unsnaps" to open and release the wiring.)
4. Install electrical plug to wiring on new motor. (You made need to cut the wiring to length.)
5. Install aluminum chuck onto shaft of new motor using hex key.
6. Secure new motor to winder base using two screws from step #1.
